| Part number: | AUIRGSL30B60K |
| Description: | IGBT 600V 78A 370W TO262 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

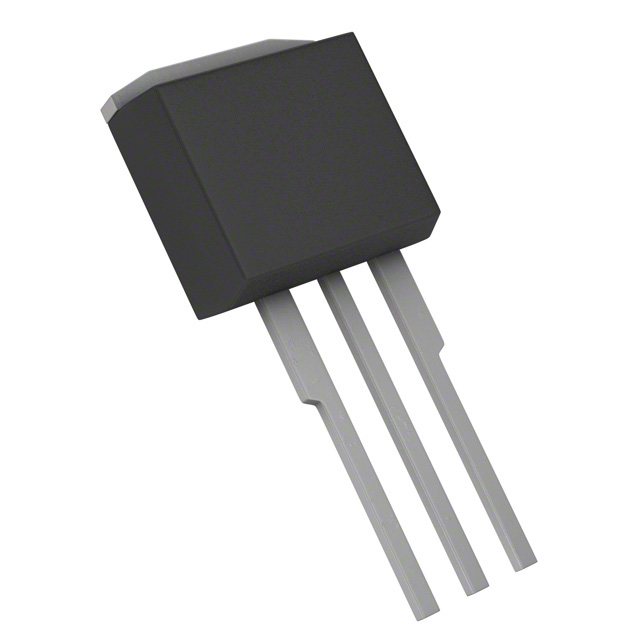

| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.35V @ 15V, 30A |
| Supplier Device Package | TO-262 |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 46ns/185ns |
| Switching Energy | 350µJ (on), 825µJ (off) |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Gate Charge | 102 nC |
| Current - Collector (Ic) (Max) | 78 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 370 W |
|
