| Part number: | DG2613DX-T1-E3 |
| Description: | IC SWITCH SPDT X 1 1.4OHM SC89-6 |
| Manufacturer | Vishay / Siliconix |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay / Siliconix" |

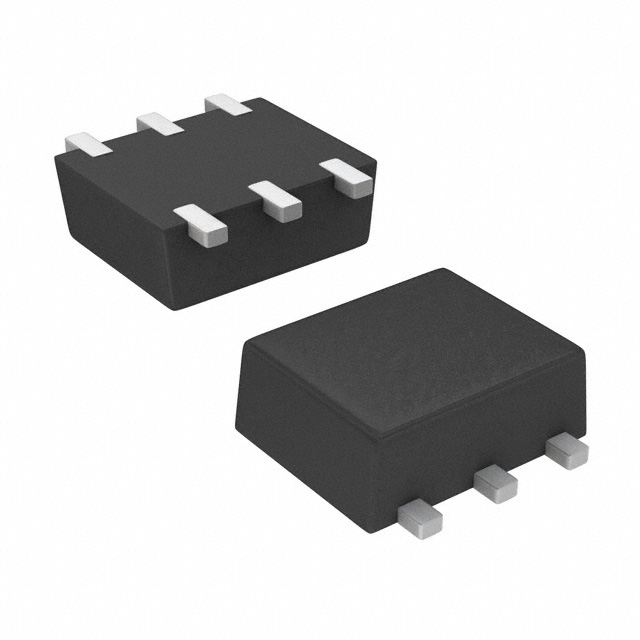

| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 1.4Ohm |
| Supplier Device Package | SC-89-6 (SOT-666) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Charge Injection | 2.4pC |
| Crosstalk | -73dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 100mOhm (Max) |
| Switch Time (Ton, Toff) (Max) | 60ns, 35ns |
| Channel Capacitance (CS(off), CD(off)) | 36pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Number of Circuits | 1 |
|
