| Part number: | SI7455DP-T1-E3 |
| Description: | MOSFET P-CH 80V 28A PPAK SO-8 |
| Manufacturer | Vishay / Siliconix |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay / Siliconix" |

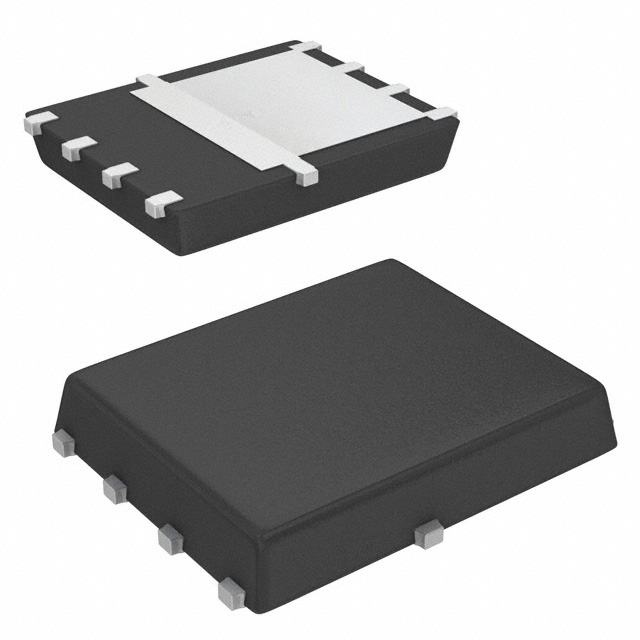

| Package / Case | PowerPAK® SO-8 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 28A (Tc) |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 10.5A, 10V |
| Power Dissipation (Max) | 5.2W (Ta), 83.3W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | PowerPAK® SO-8 |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 155 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5160 pF @ 40 V |
|
