| Part number: | 082-6124 |

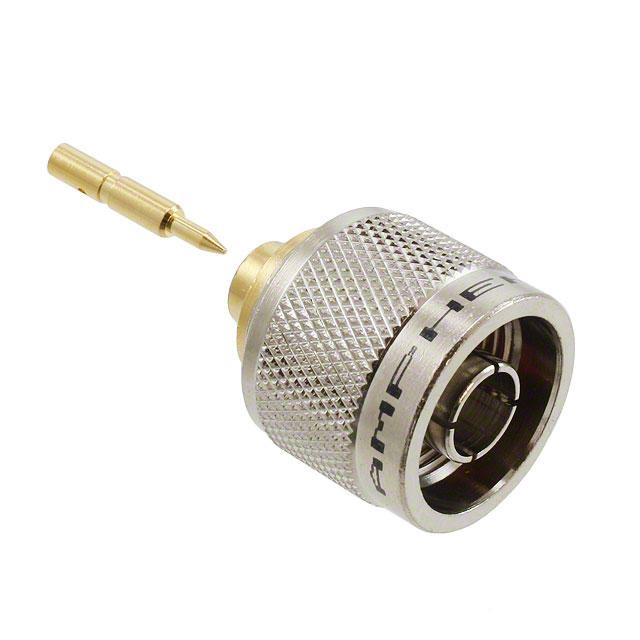

| Description: | CONN N PLUG STR 50 OHM SOLDER |
| Manufacturer | Connex (Amphenol RF) |
| Encapsulation | Bag |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Connex (Amphenol RF)" |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-401 (.250" Semi Rigid) |
| Operating Temperature | -65°C ~ 165°C |
| Insertion Loss | 0.15dB |
| Fastening Type | Threaded |
| Includes | 2 pcs - 1 Connector, 1 Contact |
| Ingress Protection | Weatherproof |
| Connector Style | N Type |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Shield Termination | Solder |
| Center Contact Material | Brass |
| Body Finish | Nickel |
| Center Contact Plating | Gold |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Voltage Rating | 1500 V |
|
