| Part number: | CT10-1030-G1 |

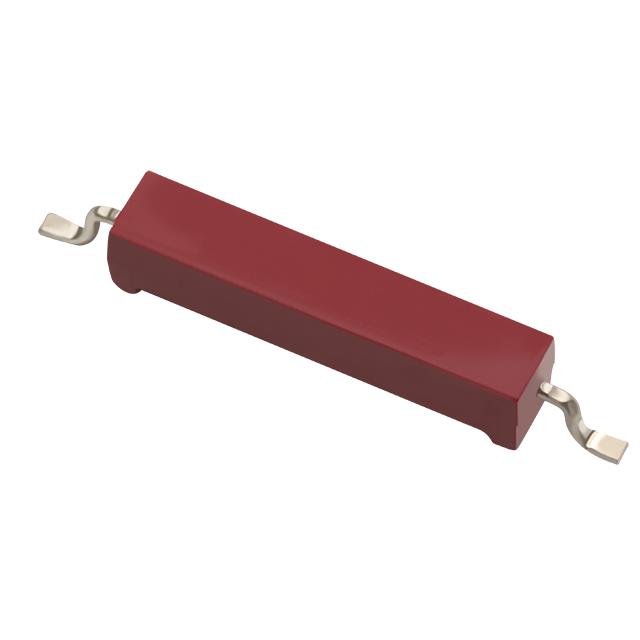

| Description: | SWITCH REED SPST-NO 500MA 140V |
| Manufacturer | Coto Technology |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Coto Technology" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Type | Molded Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Gull Wing |
| Length - Overall | 0.640" (16.26mm) |
| Power - Rated | 10W |
| Height Above Board | 0.115" (2.92mm) |
| Current - Switching | 500mA (AC/DC) |
| Voltage - Switching DC | 200 V |
| Size - Body | 0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm) |
| Operate Range | 10 ~ 30AT |
| Current - Carry | 500mA (DC) |
| Voltage - Switching AC | 140 V |
|
