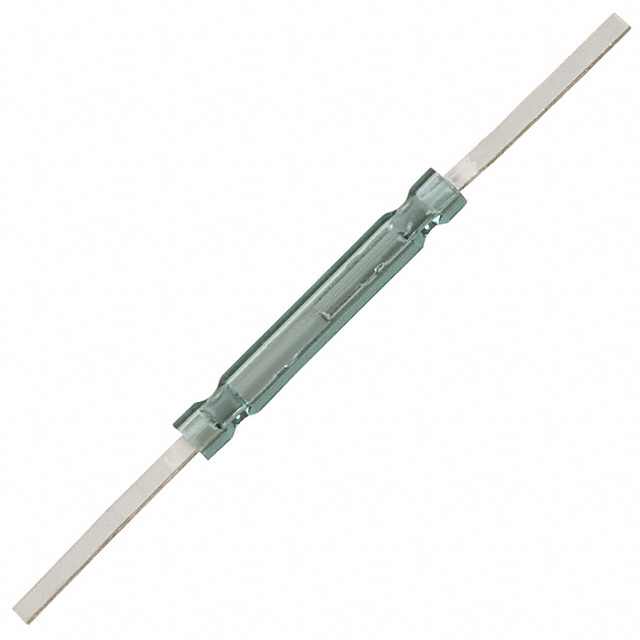

| Part number: | FR2S2030 |
| Description: | SWITCH REED SPST-NO 500MA 200V |
| Manufacturer | Coto Technology |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Coto Technology" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Axial, Flat |
| Length - Overall | 1.360" (34.54mm) |
| Power - Rated | 10VA |
| Current - Switching | 500mA (AC/DC) |
| Voltage - Switching DC | 200 V |
| Operate Time | 0.5 ms |
| Release Time | 0.2 ms |
| Size - Body | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) |
| Operate Range | 20 ~ 30AT |
| Release Range | 5 ~ 30AT |
| Current - Carry | 1.5A (AC/DC) |
| Voltage - Switching AC | 200 V |
| Capacitance | 0.3 pF |
|
