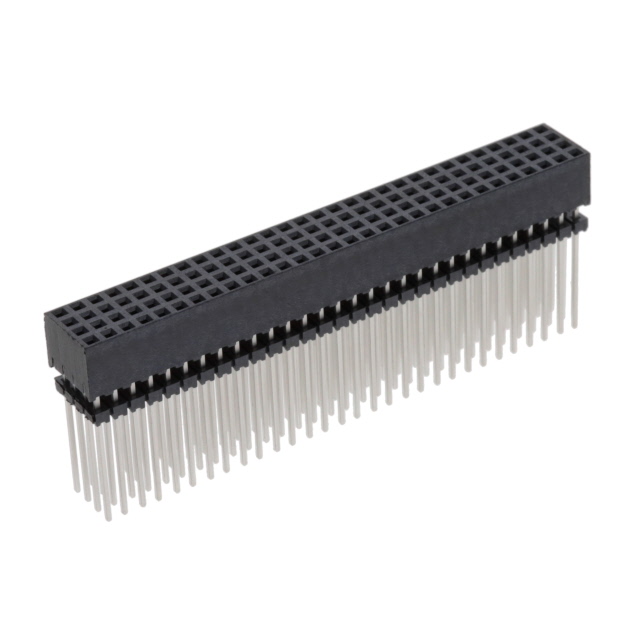

| Part number: | ESQT-130-02-M-Q-368 |
| Description: | CONN SOCKET 120P 0.079 GOLD PCB |
| Manufacturer | Samtec, Inc. |
| Encapsulation | Tube |
| Quantity | 9 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Samtec, Inc." |
| Connector Type | Elevated Socket |
| Current Rating (Amps) | 4.5A per Contact |
| Mounting Type | Through Hole |
| Number of Positions | 120 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.482" (12.24mm) |
| Insulation Height | 0.368" (9.35mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Rows | 4 |
|
