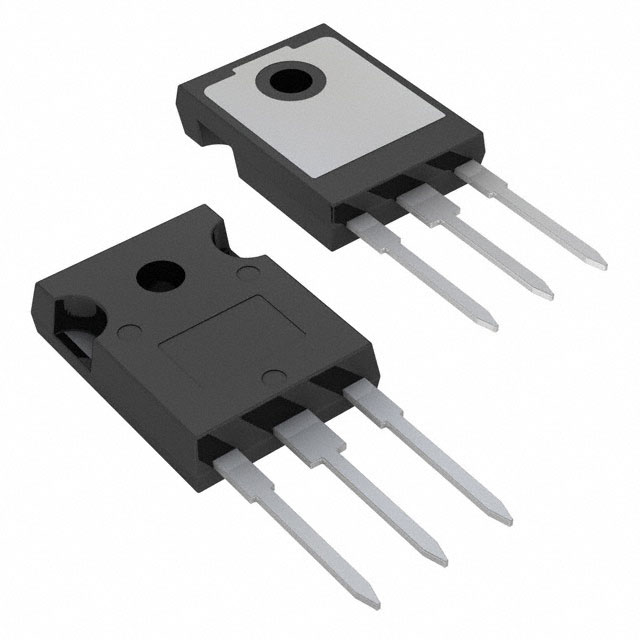

| Part number: | IRG4PC40U |
| Description: | IGBT 600V 40A 160W TO247AC |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Bag |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 20A |
| Supplier Device Package | TO-247AC |
| Td (on/off) @ 25°C | 34ns/110ns |
| Switching Energy | 320µJ (on), 350µJ (off) |
| Test Condition | 480V, 20A, 10Ohm, 15V |
| Gate Charge | 100 nC |
| Current - Collector (Ic) (Max) | 40 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 160 A |
| Power - Max | 160 W |
|
