| Part number: | IRG4PC50U |
| Description: | IGBT 600V 55A 200W TO247AC |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Bag |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

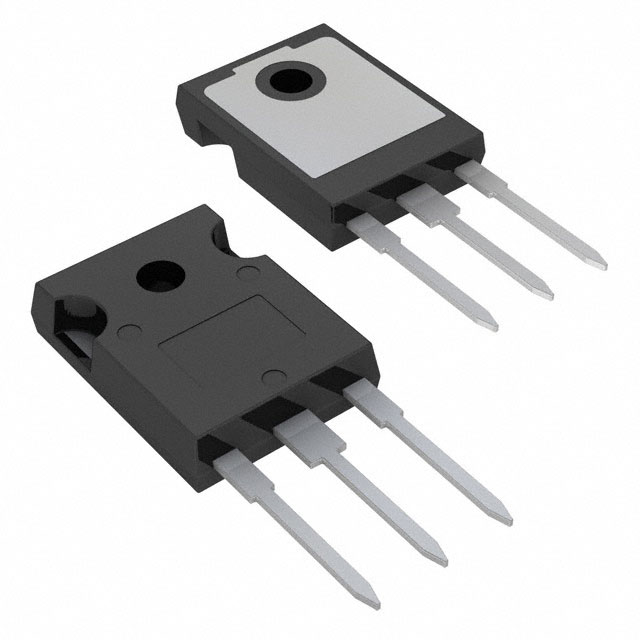

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 27A |
| Supplier Device Package | TO-247AC |
| Td (on/off) @ 25°C | 32ns/170ns |
| Switching Energy | 120µJ (on), 540µJ (off) |
| Test Condition | 480V, 27A, 5Ohm, 15V |
| Gate Charge | 180 nC |
| Current - Collector (Ic) (Max) | 55 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 220 A |
| Power - Max | 200 W |
|
