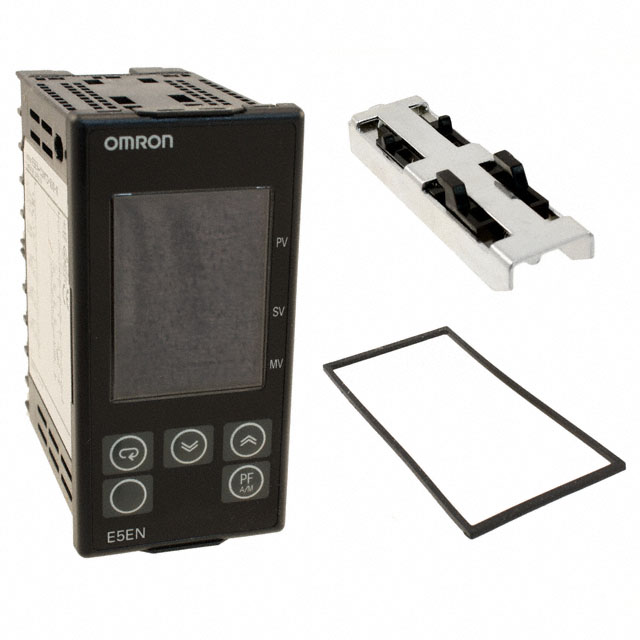

| Part number: | E5EN-C3MTD-500-N AC/DC24 |
| Description: | CONTROL TEMP ANALOG/REL OUT 24V |
| Manufacturer | Omron Automation |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Omron Automation" |
| Features | Option Cards Available |
| Display Type | LCD - Tri Color Characters, Backlight |
| Output Type | Analog, Relay (3) |
| Mounting Type | Panel Mount |
| Type | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, W) |
| Termination Style | Screw Terminal |
| Voltage - Supply | 24VAC/DC |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Panel Cutout Dimensions | Rectangular - 92.00mm x 45.00mm |
| Input Range | -200°C ~ 2300°C, 0 ~ 50mV |
| Display Characters - Height | 0.465" (11.80mm), 0.319" (8.10mm), 0.228" (5.80mm) |
| Communications | Option Cards Available |
| Control Method | On/Off, Proportional (PID) |
| Number of Characters Per Row | 4, 4, 4 |
|
