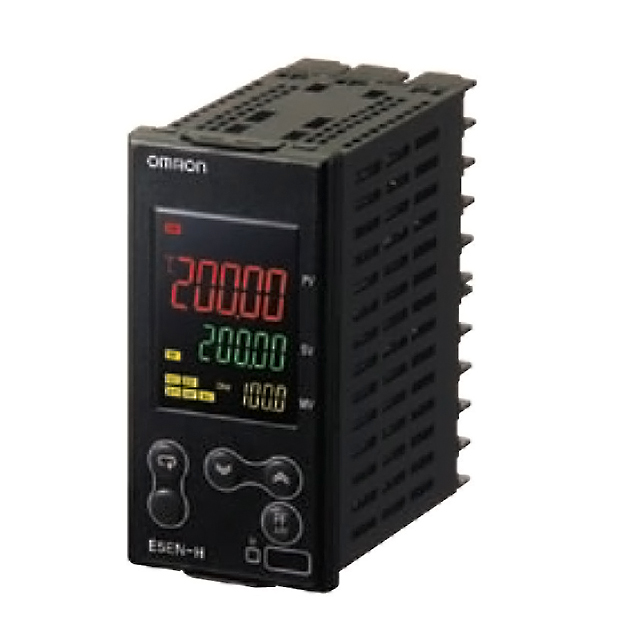

| Part number: | E5EN-HSS2HBM-500 AC100-240 |
| Description: | CONTROL TEMP/PROC RELAY/VOLT OUT |
| Manufacturer | Omron Automation |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Omron Automation" |
| Features | Event Input, Heater Fault Detection, Option Cards Available |
| Display Type | LCD - Tri Color Characters, Backlight |
| Output Type | Relay (2), Voltage (External SSR) (2) |
| Mounting Type | Panel Mount |
| Type | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) |
| Termination Style | Screw Terminal |
| Voltage - Supply | 100 ~ 240VAC |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Panel Cutout Dimensions | Rectangular - 92.00mm x 45.00mm |
| Input Range | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC |
| Display Characters - Height | 0.465" (11.80mm), 0.319" (8.10mm), 0.228" (5.80mm) |
| Communications | Option Cards Available |
| Control Method | On/Off, Proportional (PID) |
| Number of Characters Per Row | 5, 5, 4 |
|
