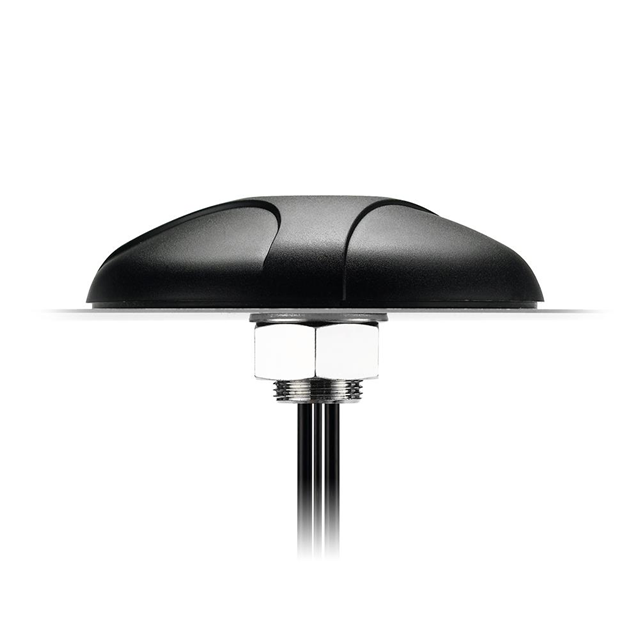

| Part number: | MA600.A.ABC.006 |
| Description: | RF ANT 850MHZ/900MHZ DOME PNL MT |
| Manufacturer | Taoglas |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Taoglas" |
| Features | Cable - 3m, LNA, Filter |
| Mounting Type | Panel Mount |
| Frequency Range | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz |
| Applications | CDMA, GLONASS, GPS, GSM, HSPA, UMTS, Wi-Fi |
| Gain | 2.1dBi, -0.2dBi, 2.9dBi, 3dBi, 5.1dBi, 2.1dBi, 2.9dBi, 3.8dBi, 2.8dBi |
| Termination | SMA Male (3) |
| Ingress Protection | IP67 |
| Number of Bands | 11 |
| VSWR | 2, 1.6 |
| Antenna Type | Dome |
| Height (Max) | 1.555" (39.50mm) |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 4.85GHz, 5.2GHz, 5.65GHz |
| RF Family/Standard | Cellular, Navigation, WiFi |
|
