| Part number: | 3058172 |

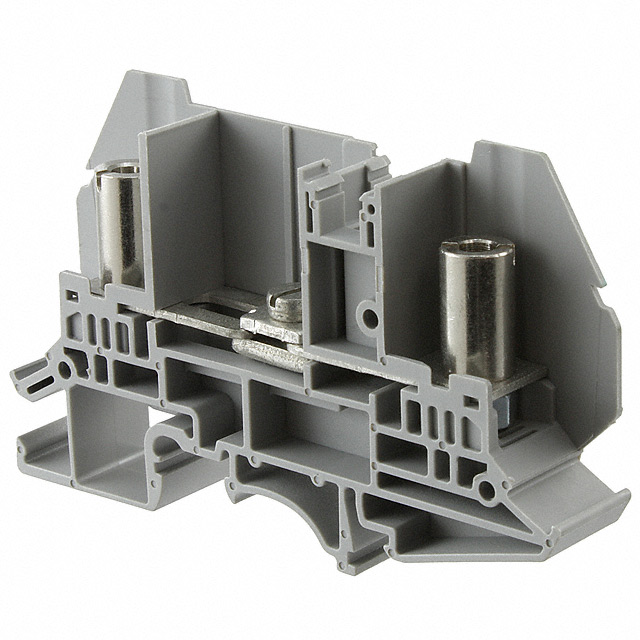

| Description: | TERM BLK NEMA 2POS 13.0MM GRAY |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Features | Disconnect Point |
| Mounting Type | Direct Mount |
| Length | 3.146" (79.90mm) |
| Type | NEMA Open Construction |
| Termination Style | Bolt and Nut |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 13.0mm |
| Wire Gauge or Range - AWG | 8-26 AWG |
| Wire Gauge or Range - mm² | 0.1-10mm² |
| Housing Color | Gray |
| Current - UL | 45 A |
| Current - IEC | 50 A |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Number of Positions | 2 |
|
