| Part number: | S2S2RP |
| Description: | SCR 200V 800MA DO214 |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |

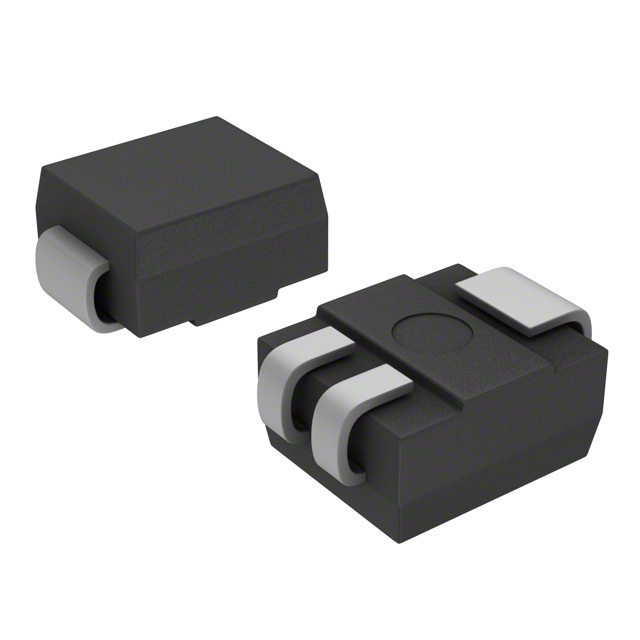

| Package / Case | DO-214AA, SMB (3 Leads), Compak |
| Mounting Type | Surface Mount |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 110°C |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Gate Trigger (Igt) (Max) | 50 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 16A, 20A |
| Current - On State (It (AV)) (Max) | 510 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - Off State (Max) | 1 µA |
| Supplier Device Package | DO-214 (Compak) |
| Current - On State (It (RMS)) (Max) | 800 mA |
| Voltage - Off State | 200 V |
|
