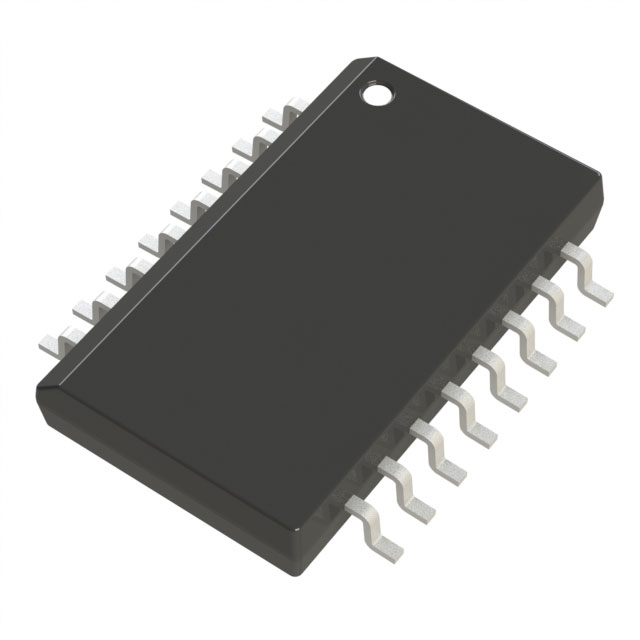

| Part number: | ADM2687EBRIZ |
| Description: | DGTL ISO 5KV RS422/RS485 16SOIC |
| Manufacturer | Linear Technology (Analog Devices, Inc.) |
| Encapsulation | Tube |
| Quantity | 37 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Linear Technology (Analog Devices, Inc.)" |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | RS422, RS485 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.3V, 5V |
| Data Rate | 500kbps |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 5000Vrms |
| Inputs - Side 1/Side 2 | 2/1 |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 1.1µs, 1.1µs (Max) |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 700ns, 700ns |
| Isolated Power | Yes |
| Channel Type | Unidirectional |
| Number of Channels | 3 |
|
