| Part number: | 11302 |

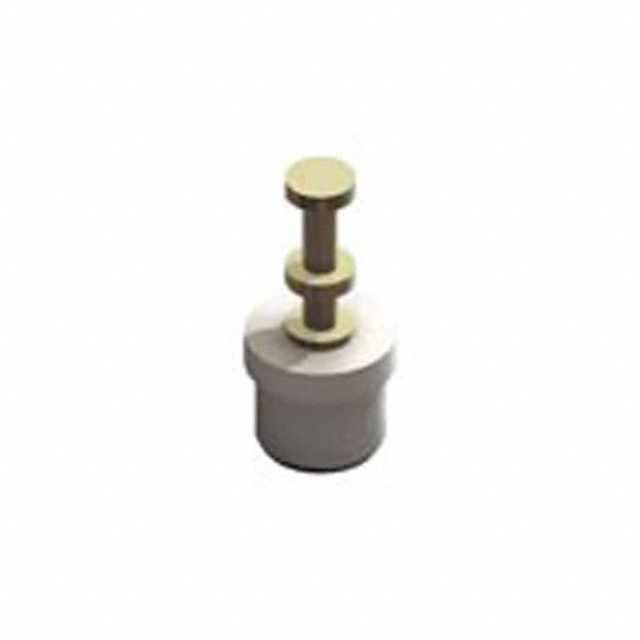

| Description: | TERM TURRET SINGLE L=6.35MM TIN |
| Manufacturer | Keystone Electronics Corp. |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Keystone Electronics Corp." |
| Contact Finish | Tin |
| Mounting Type | Through Hole |
| Insulation | Insulated |
| Board Thickness | 0.062" (1.57mm) |
| Terminal Type | Single End |
| Flange Diameter | 0.125" (3.18mm) |
| Length - Overall | 0.350" (8.89mm) |
| Termination | Press-Fit |
| Length - Above Board | 0.250" (6.35mm) |
| Mounting Hole Diameter | 0.086" (2.18mm) |
| Material - Insulation | Polytetrafluoroethylene (PTFE) |
| Contact Material | Brass |
| Diameter - Turret Head | 0.080" (2.03mm) |
| Insulation Color | White |
| Number of Turrets | Double |
| Length - Below Flange | 0.100" (2.54mm) |
|
