| Part number: | 11307 |

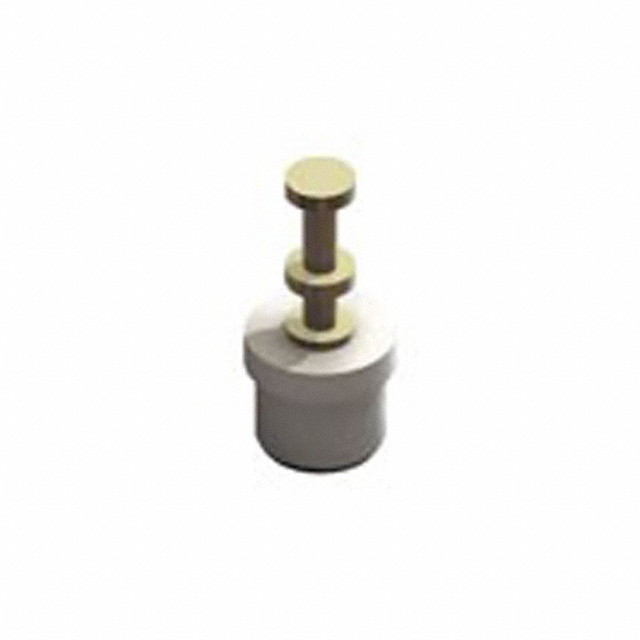

| Description: | TERM TURRET SINGLE L=7.37MM TIN |
| Manufacturer | Keystone Electronics Corp. |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Keystone Electronics Corp." |
| Contact Finish | Tin |
| Mounting Type | Through Hole |
| Insulation | Insulated |
| Board Thickness | 0.062" (1.57mm) |
| Terminal Type | Single End |
| Flange Diameter | 0.172" (4.37mm) |
| Length - Overall | 0.540" (13.72mm) |
| Termination | Press-Fit |
| Length - Above Board | 0.290" (7.37mm) |
| Mounting Hole Diameter | 0.136" (3.45mm) |
| Material - Insulation | Polytetrafluoroethylene (PTFE) |
| Contact Material | Brass |
| Diameter - Turret Head | 0.093" (2.36mm) |
| Insulation Color | White |
| Number of Turrets | Double |
| Length - Below Flange | 0.250" (6.35mm) |
|
