| Part number: | POE33U-1AT |

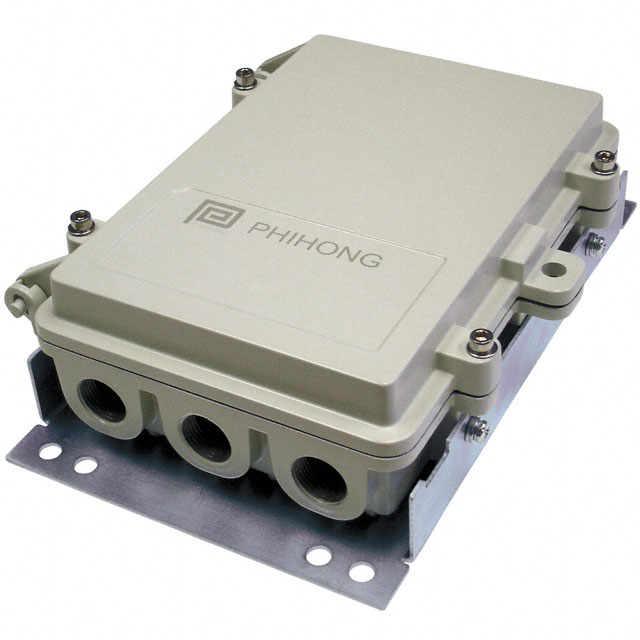

| Description: | POE INJECTOR 33.6W 56V BRACKET |
| Manufacturer | PHIHONG USA |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PHIHONG USA" |
| Features | IP67, OCP, OVP, SCP |
| Size / Dimension | 9.93" L x 6.93" W x 3.07" H (252.1mm x 176.0mm x 78.0mm) |
| Voltage - Output | 56V |
| Output Connector | RJ45 (Data, Power) |
| Mounting Type | Bracket Mount |
| Voltage - Input | 90 ~ 264 VAC |
| Type | Midspan Injector |
| Weight | 6.2 lbs (2.8 kg) |
| Operating Temperature | -40°C ~ 60°C |
| Data Rate | 10/100/1000 Mbps |
| Approval Agency | CE, cULus |
| Efficiency | 70% |
| Power (Watts) - Per Port | 33.6W |
| Input Connector | Terminal Block (Power), RJ45 (Data) |
| Compliance | IEEE802.3at |
| Current - Output | 600 mA |
| Number of Ports | 1 |
|
