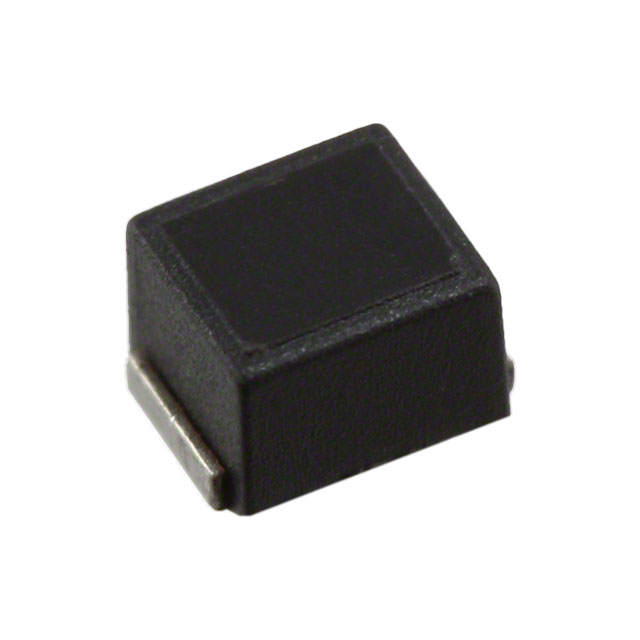

| Part number: | FSLM2520-R15J=P2 |
| Description: | FIXED IND 150NH 500MA 250 MOHM |
| Manufacturer | Toko America Inc. |
| Encapsulation | Cut Tape (CT) |
| Quantity | 2000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Toko America Inc." |
| Tolerance | ±5% |
| Package / Case | 1008 (2520 Metric) |
| Size / Dimension | 0.106" L x 0.087" W (2.70mm x 2.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 250mOhm Max |
| Q @ Freq | 30 @ 25.2MHz |
| Frequency - Self Resonant | 530MHz |
| Inductance Frequency - Test | 25.2 MHz |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.067" (1.70mm) |
| Inductance | 150 nH |
| Current Rating (Amps) | 500 mA |
|
