| Part number: | IKD03N60RF |
| Description: | IGBT 600V 5A 53.6W TO252-3 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

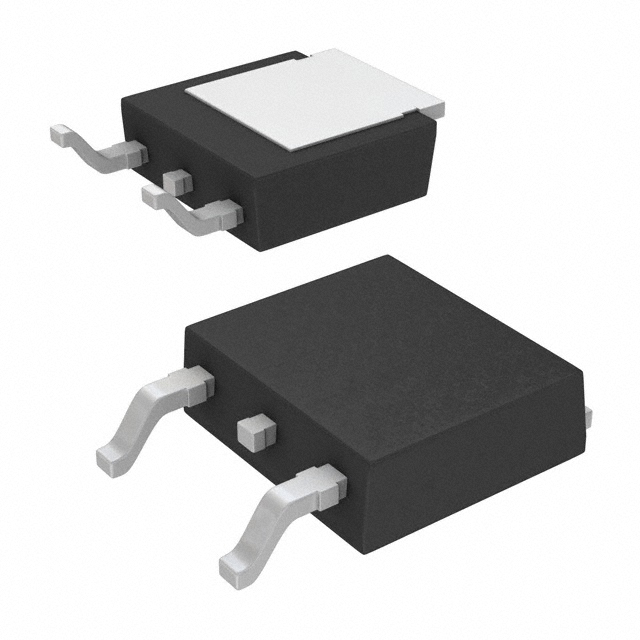

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 31 ns |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 2.5A |
| Supplier Device Package | PG-TO252-3 |
| IGBT Type | Trench |
| Td (on/off) @ 25°C | 10ns/128ns |
| Switching Energy | 90µJ |
| Test Condition | 400V, 2.5A, 68Ohm, 15V |
| Gate Charge | 17.1 nC |
| Current - Collector (Ic) (Max) | 5 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 7.5 A |
| Power - Max | 53.6 W |
|
