| Part number: | SSCDRRN100PGAB5 |

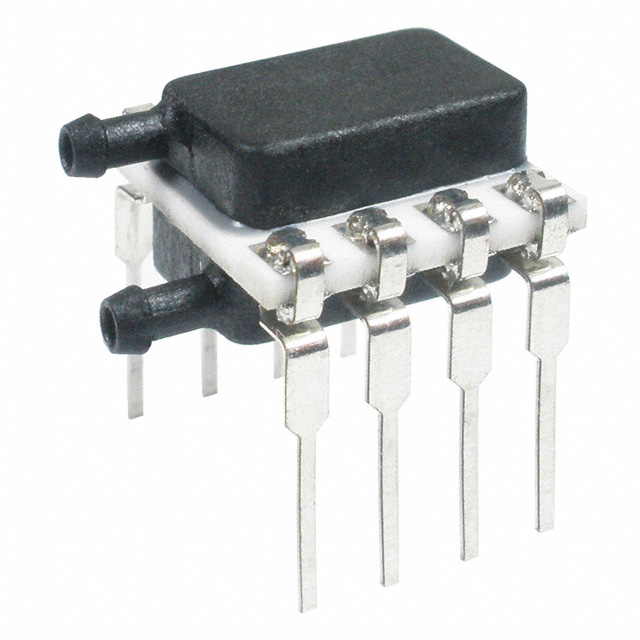

| Description: | SENSOR 100PSIG 0.08" 4.75V 8DIP |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Honeywell Sensing and Productivity Solutions" |
| Features | Amplified Output, Temperature Compensated |
| Package / Case | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.25 V ~ 4.75 V |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.08" (1.93mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbed |
| Maximum Pressure | 250PSI (1723.69kPa) |
|
