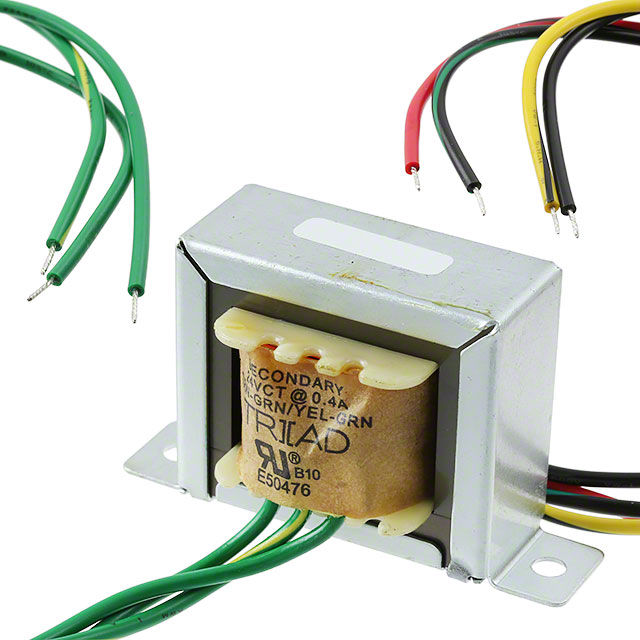

| Part number: | F-3117X |
| Description: | PWR XFMR LAMINATED 9.6VA CHAS MT |
| Manufacturer | Triad Magnetics |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 71.42mm L x 38.10mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 0.75 lb (340.19 g) |
| Termination Style | Wire Leads |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Single |
| Power - Max | 9.6VA |
| Voltage - Isolation | 1500Vrms |
| Current - Output (Max) | 400mA |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 41.28mm |
| Voltage - Secondary (Full Load) | 24V |
| Center Tap | Yes |
|
