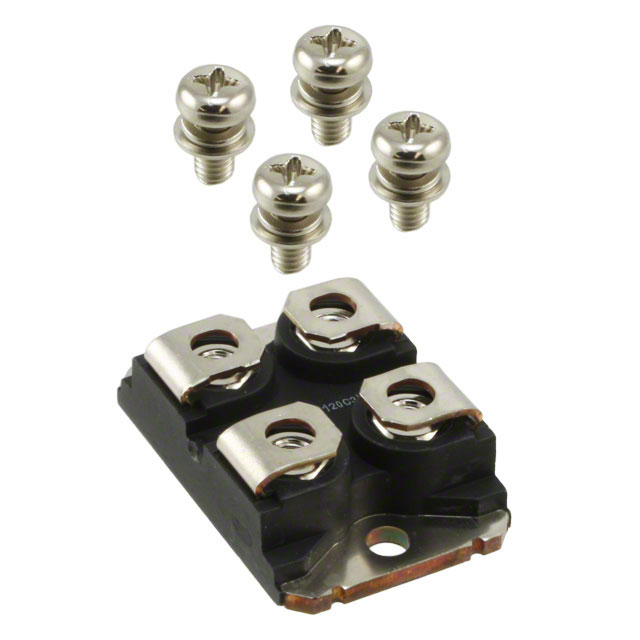

| Part number: | DSEI2X61-10B |
| Description: | DIODE MODULE GP 1KV 60A SOT227B |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | SOT-227-4, miniBLOC |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Technology | Standard |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 60A |
| Supplier Device Package | SOT-227B |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 2.3 V @ 60 A |
| Current - Reverse Leakage @ Vr | 3 mA @ 1000 V |
|
