| Part number: | STGWA60NC60WDR |
| Description: | IGBT 600V 130A 340W TO247 |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |

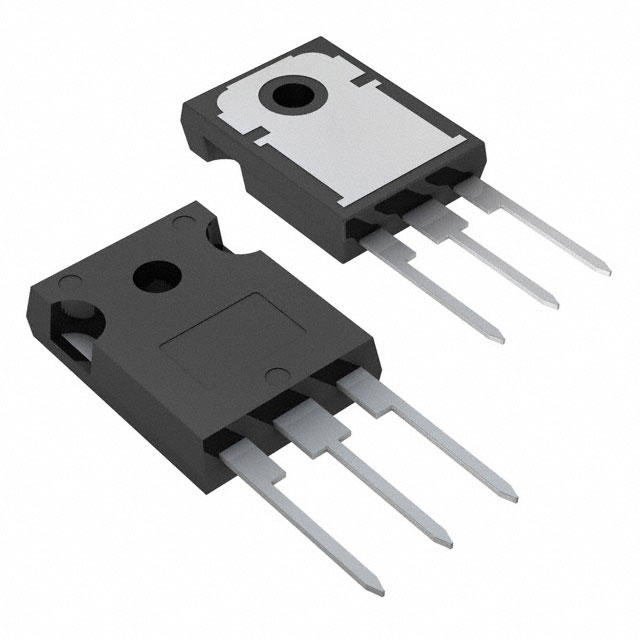

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 42 ns |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 40A |
| Supplier Device Package | TO-247 Long Leads |
| Td (on/off) @ 25°C | 40ns/240ns |
| Switching Energy | 743µJ (on), 560µJ (off) |
| Test Condition | 390V, 40A, 10Ohm, 15V |
| Gate Charge | 195 nC |
| Current - Collector (Ic) (Max) | 130 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 250 A |
| Power - Max | 340 W |
|
