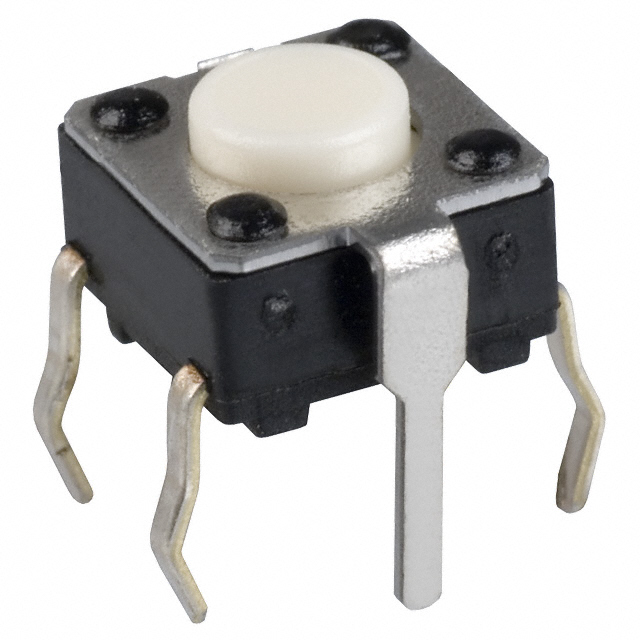

| Part number: | EVQ-PBE04M |
| Description: | SWITCH TACTILE SPST-NO 0.02A 15V |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Features | Grounding Pin |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -20°C ~ 70°C |
| Termination Style | PC Pin |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.02A @ 15VDC |
| Actuator Type | Standard |
| Operating Force | 160gf |
| Outline | 6.00mm x 6.00mm |
| Actuator Height off PCB, Vertical | 4.30mm |
| Actuator Orientation | Top Actuated |
|
