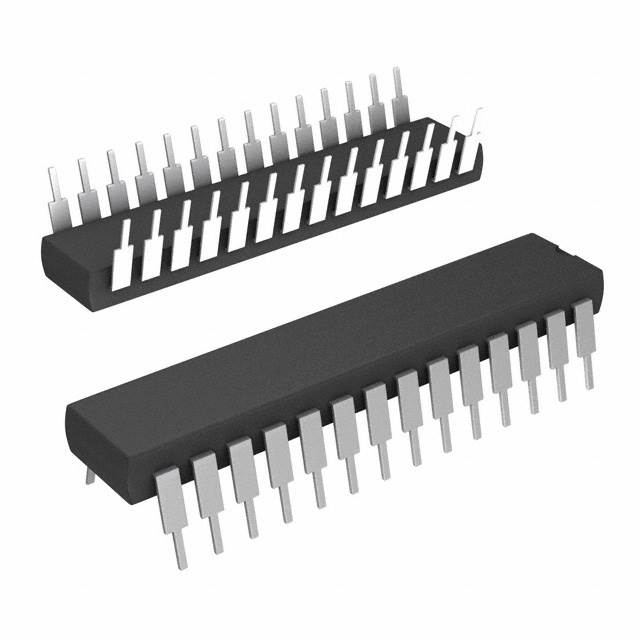

| Part number: | MPC506AP |
| Description: | IC MUX 16:1 1.5KOHM 28DIP |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 13 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 1.5kOhm |
| Supplier Device Package | 28-PDIP |
| Voltage - Supply, Dual (V±) | ±5V ~ 22V |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Switch Time (Ton, Toff) (Max) | 200ns, 250ns (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 50pF |
| Current - Leakage (IS(off)) (Max) | 500pA (Typ) |
| Number of Circuits | 1 |
|
