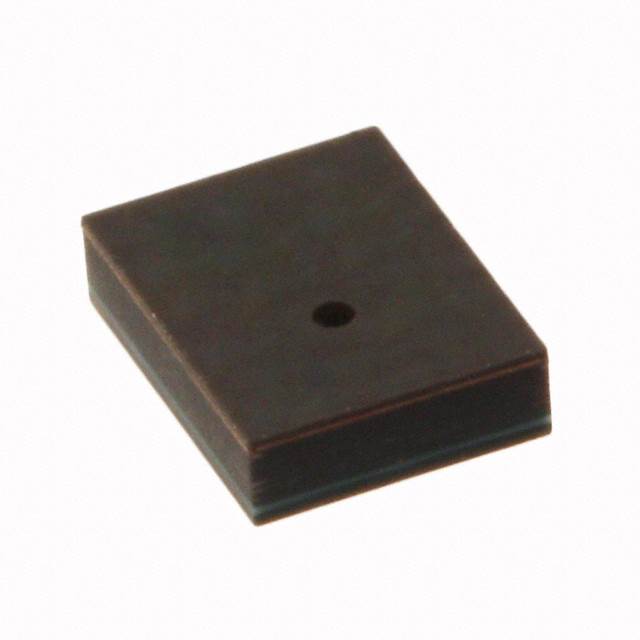

| Part number: | MP34DT01 |
| Description: | MIC MEMS DIGITAL PDM OMNI -26DB |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tray |
| Quantity | 490 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |
| Output Type | Digital, PDM |
| Size / Dimension | 0.157" L x 0.118" W (4.00mm x 3.00mm) |
| Sensitivity | -26dB ±3dB @ 94dB SPL |
| Shape | Rectangular |
| Type | MEMS (Silicon) |
| S/N Ratio | 63dB |
| Termination | Solder Pads |
| Direction | Omnidirectional |
| Port Location | Top |
| Height (Max) | 0.043" (1.10mm) |
| Voltage - Rated | 1.8 V |
| Current - Supply | 600 µA |
| Voltage Range | 1.64 V ~ 3.6 V |
| Frequency Range | 100 Hz ~ 10 kHz |
|
