| Part number: | EEH-ZC1V220R |

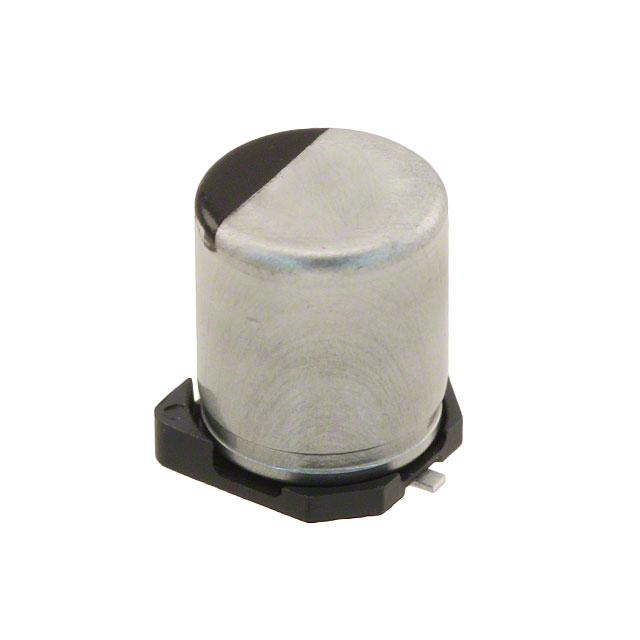

| Description: | CAP ALUM HYB 22UF 20% 35V SMD |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Mounting Type | Surface Mount |
| Type | Hybrid |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Automotive |
| Ratings | AEC-Q200 |
| ESR (Equivalent Series Resistance) | 100mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Capacitance | 22 µF |
| Voltage - Rated | 35 V |
| Ripple Current @ Low Frequency | 55 mA @ 100 Hz |
| Ripple Current @ High Frequency | 550 mA @ 100 kHz |
|
