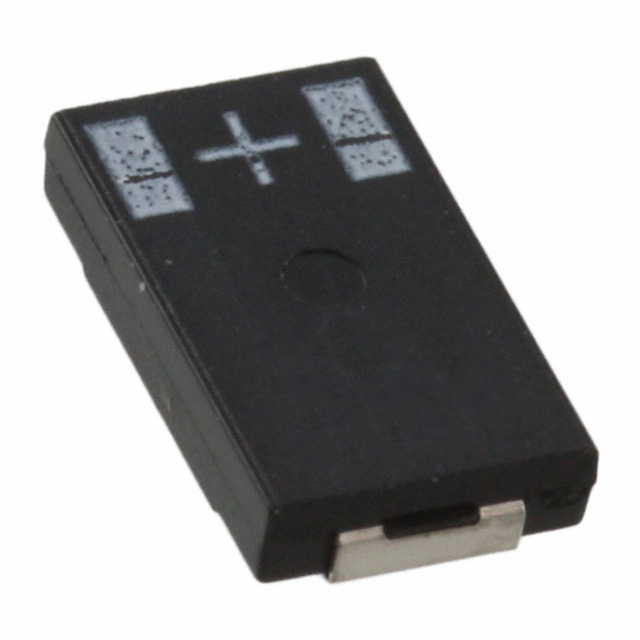

| Part number: | 2.5SZE120M |
| Description: | CAP ALUM POLY 120UF 20% 2.5V SMD |
| Manufacturer | Rubycon |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rubycon" |
| Tolerance | ±20% |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 5mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
| Capacitance | 120 µF |
| Voltage - Rated | 2.5 V |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
|
