| Part number: | MRPR-3-32-38 |

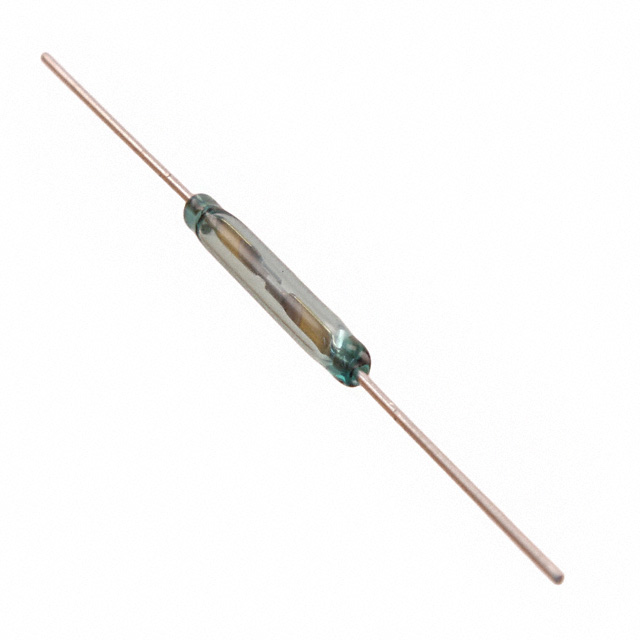

| Description: | SWITCH REED SPST-NO 1.1A 140V |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Axial |
| Length - Overall | 2.230" (56.64mm) |
| Power - Rated | 50W |
| Current - Switching | 1.1A (AC), 1.5A (DC) |
| Voltage - Switching DC | 200 V |
| Operate Time | 0.75 ms |
| Release Time | 0.3 ms |
| Size - Body | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) |
| Operate Range | 32 ~ 38AT |
| Current - Carry | 3A (DC) |
| Voltage - Switching AC | 140 V |
| Capacitance | 0.2 pF |
|
