| Part number: | 431256038736 |

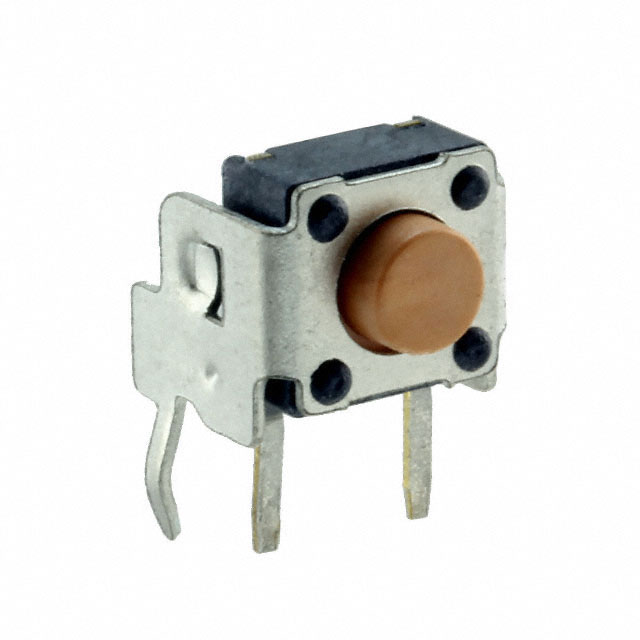

| Description: | SWITCH TACTILE SPST-NO 0.05A 12V |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Features | Grounding Pin |
| Mounting Type | Through Hole, Right Angle |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Standard |
| Operating Force | 360gf |
| Outline | 7.40mm x 6.55mm |
| Actuator Orientation | Side Actuated |
| Actuator Length, Right Angle | 3.85mm |
|
