| Part number: | 1598-2 |

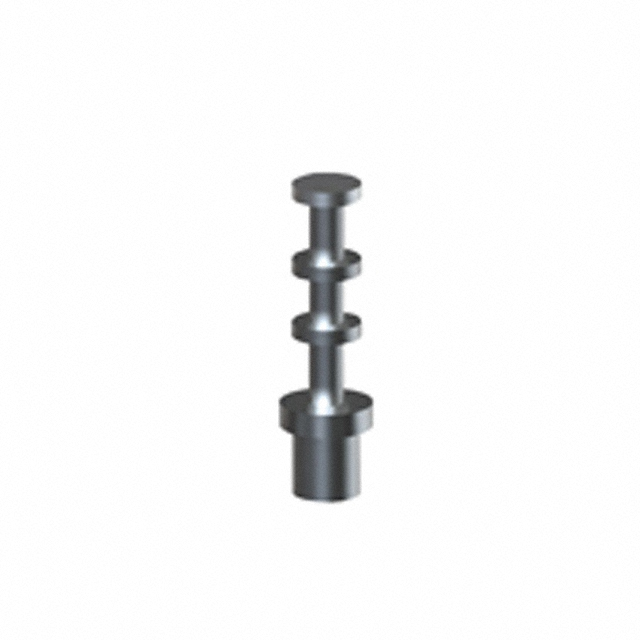

| Description: | TERM TURRET SINGLE L=7.65MM TIN |
| Manufacturer | Keystone Electronics Corp. |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Keystone Electronics Corp." |
| Contact Finish | Tin |
| Mounting Type | Through Hole |
| Insulation | Non-Insulated |
| Board Thickness | 0.062" (1.57mm) |
| Terminal Type | Single End |
| Flange Diameter | 0.125" (3.18mm) |
| Length - Overall | 0.395" (10.03mm) |
| Termination | Staking Flare |
| Length - Above Board | 0.301" (7.65mm) |
| Mounting Hole Diameter | 0.094" (2.39mm) |
| Contact Material | Brass |
| Diameter - Turret Head | 0.093" (2.36mm) |
| Number of Turrets | Triple |
| Length - Below Flange | 0.094" (2.39mm) |
| Staking Side OD | 0.090" (2.29mm) |
|
