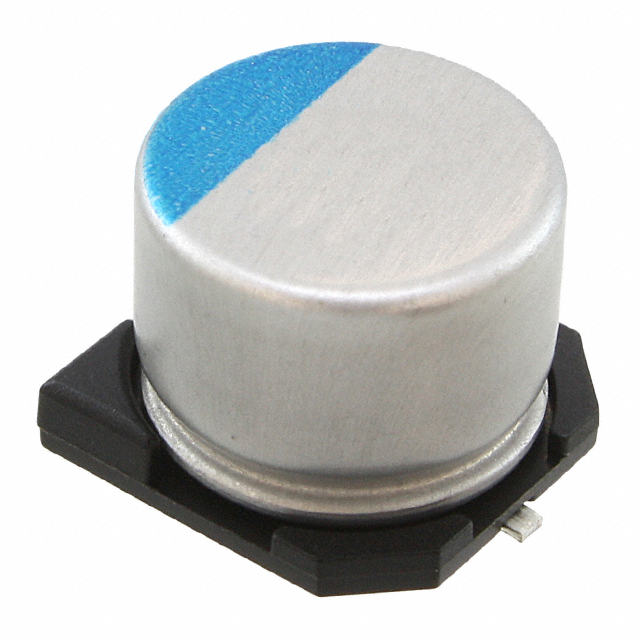

| Part number: | PVH-25V390MH80E-R2 |
| Description: | CAP ALUM POLY 39UF 20% 25V SMD |
| Manufacturer | Elna America |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Elna America" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Capacitance | 39 µF |
| Voltage - Rated | 25 V |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
|
