| Part number: | 760308101 |

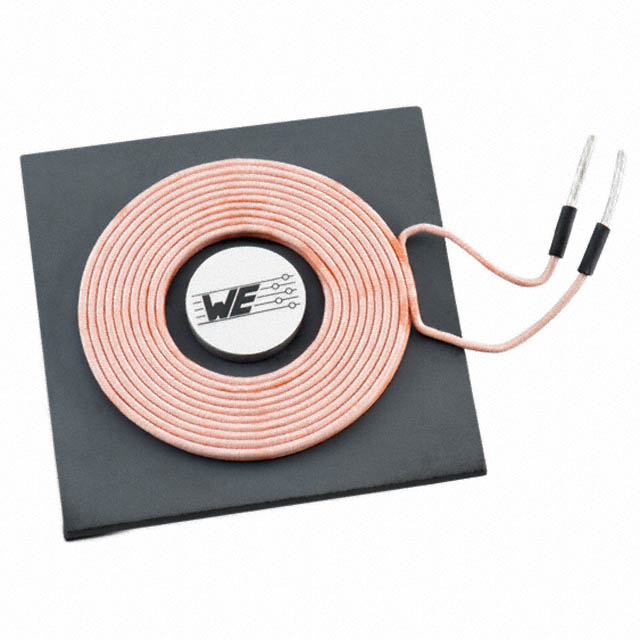

| Description: | TX 1 COIL 2 LAYER 24UH 6A |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Tray |
| Quantity | 14 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Tolerance | ±10% |
| Inductance | 24µH |
| Size / Dimension | 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm) |
| Current Rating (Amps) | 6A |
| Function | Transmitter |
| Type | 1 Coil, 2 Layer |
| Operating Temperature | -20°C ~ 105°C |
| DC Resistance (DCR) | 100mOhm Max |
| Q @ Freq | 90 @ 125kHz |
| Frequency - Self Resonant | 6MHz |
| Current - Saturation (Isat) | 10A |
|
