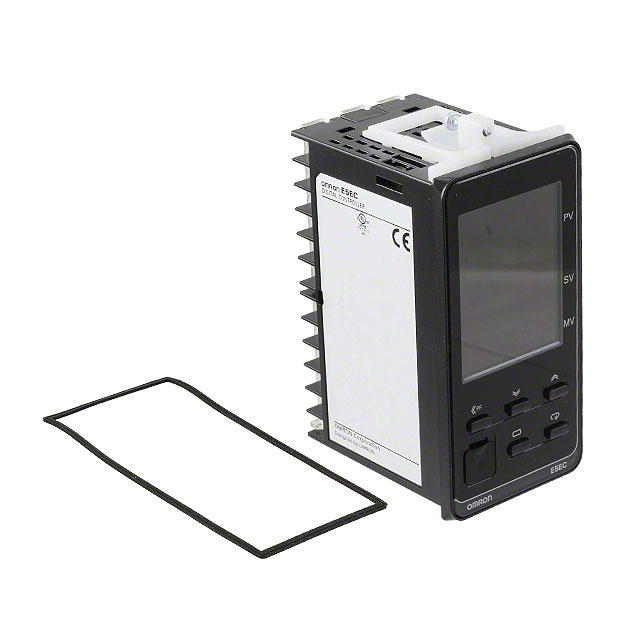

| Part number: | E5EC-CC4D5M-004 |
| Description: | CONTROL TEMP/PROC 24V PANEL MT |
| Manufacturer | Omron Automation |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Omron Automation" |
| Features | Event Input |
| Display Type | LCD - Tri Color Characters, Backlight |
| Output Type | Analog (2), Relay (4) |
| Mounting Type | Panel Mount |
| Type | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) |
| Weight | 0.463 lb (210.01 g) |
| Operating Temperature | -10°C ~ 55°C |
| Termination Style | Screw Terminal |
| Voltage - Supply | 24VAC/DC |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Panel Cutout Dimensions | Rectangular - 92.00mm x 45.00mm |
| Input Range | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC |
| Display Characters - Height | 0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm) |
| Communications | RS-485 (CompoWay/F, Modbus) |
| Control Method | On/Off, Proportional (PID) |
| Number of Characters Per Row | 4, 4, 4 |
|
