| Part number: | 1003-004-01010 |

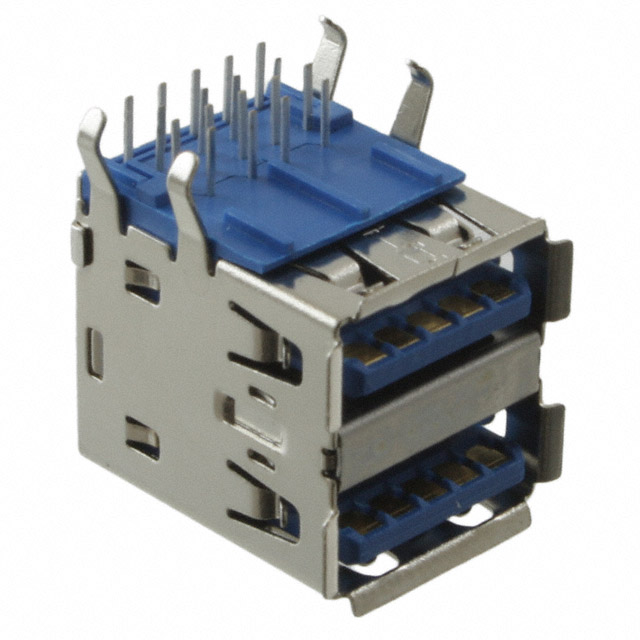

| Description: | CONN RCPT USB3.0 TYPEA STACK R/A |
| Manufacturer | CnC Tech |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "CnC Tech" |
| Features | Board Lock |
| Number of Contacts | 18 |
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Gender | Receptacle |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.25A, 1.8A |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -40°C ~ 105°C |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Horizontal |
| Mating Cycles | 5000 |
| Insulation Color | Blue |
| Shell/Shielding Material | Brass |
| Number of Ports | 2 |
|
