| Part number: | 0424026 |

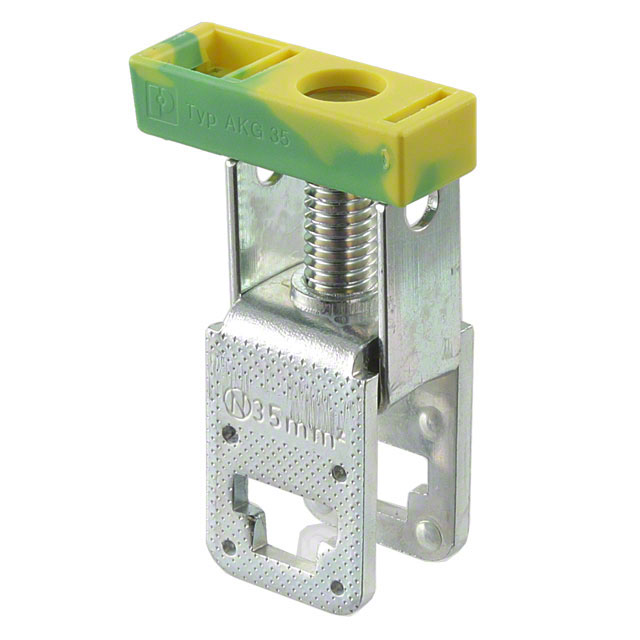

| Description: | TERM BLK BUS BAR 1POS 14.3MM GRN |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Mounting Type | Bus Bar |
| Length | 1.063" (27.00mm) |
| Type | Bus Bar - Central |
| Termination Style | Screw |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-2 |
| Number of Levels | 1 |
| Terminal - Width | 14.3mm |
| Wire Gauge or Range - AWG | 2-18 AWG |
| Wire Gauge or Range - mm² | 2.5-35mm² |
| Housing Color | Green, Yellow |
| Stripping Length | 16mm |
| Current - UL | 115 A |
| Current - IEC | 125 A |
| Voltage - UL | 300 V |
| Number of Positions | 1 |
|
