| Part number: | 1788907 |

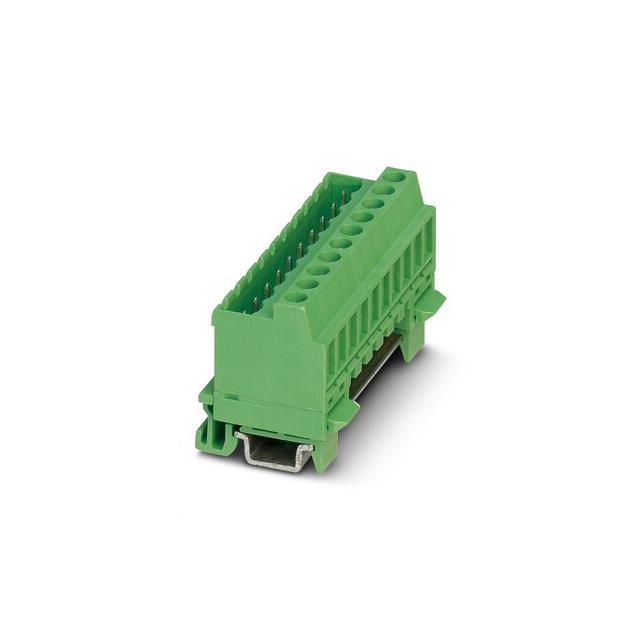

| Description: | TERM BLK PLUG 20POS 27.2MM GREEN |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Mounting Type | DIN Rail |
| Length | 4.060" (103.12mm) |
| Type | Plug Connection - Ganged |
| Termination Style | Plug Receptacles, Screw |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-2 |
| Number of Levels | 1 |
| Terminal - Width | 27.2mm |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Height (Max) | 1.181" (30.00mm) |
| Housing Color | Green |
| Stripping Length | 7mm |
| Current - UL | 12 A |
| Current - IEC | 12 A |
| Voltage - IEC | 300 V |
| Voltage - UL | 300 V |
| Number of Positions | 20 |
|
