| Part number: | 0217005.H |

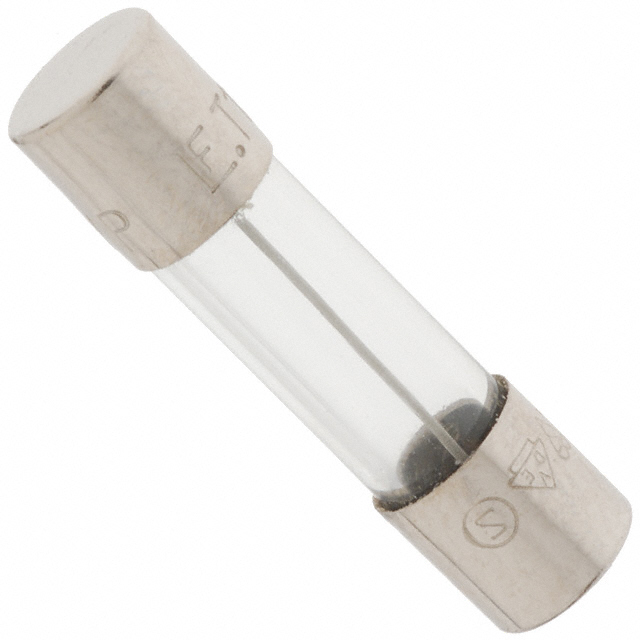

| Description: | FUSE GLASS 5A 250VAC 5X20MM |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | 5mm x 20mm |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Requires Holder |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE |
| DC Cold Resistance | 0.014 Ohms |
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating (Amps) | 5 A |
| Voltage Rating - AC | 250 V |
| Melting I²t | 42.796 |
|
