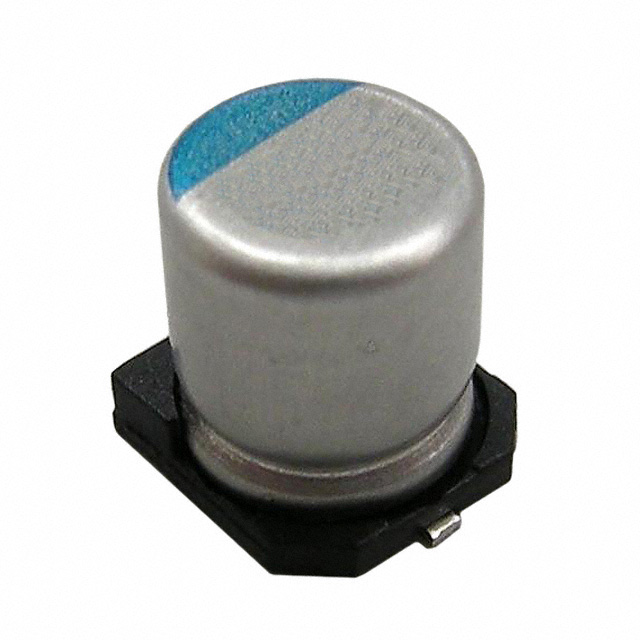

| Part number: | APXK6R3ARA181ME61G |
| Description: | CAP ALUM POLY 180UF 20% 6.3V SMD |
| Manufacturer | United Chemi-Con |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 17mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Capacitance | 180 µF |
| Voltage - Rated | 6.3 V |
| Ripple Current @ High Frequency | 3.39 A @ 100 kHz |
|
