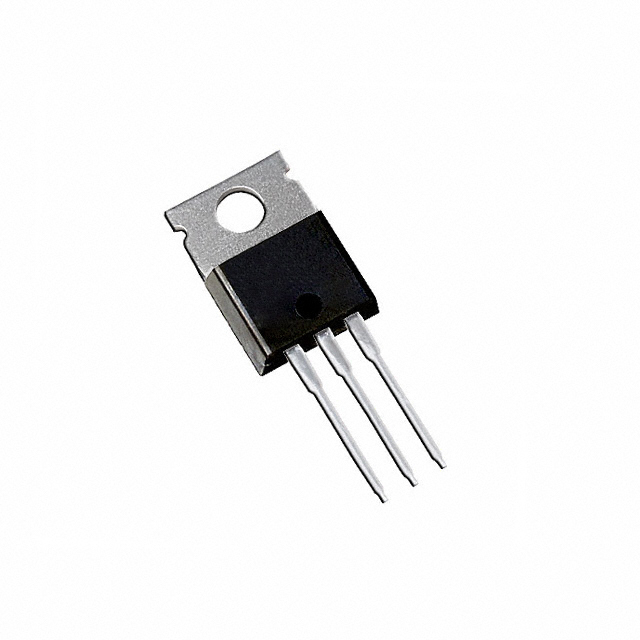

| Part number: | IRG4BC10K |
| Description: | IGBT 600V 9A 38W TO220AB |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.62V @ 15V, 5A |
| Supplier Device Package | TO-220AB |
| Td (on/off) @ 25°C | 11ns/51ns |
| Switching Energy | 160µJ (on), 100µJ (off) |
| Test Condition | 480V, 5A, 100Ohm, 15V |
| Gate Charge | 19 nC |
| Current - Collector (Ic) (Max) | 9 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 18 A |
| Power - Max | 38 W |
|
