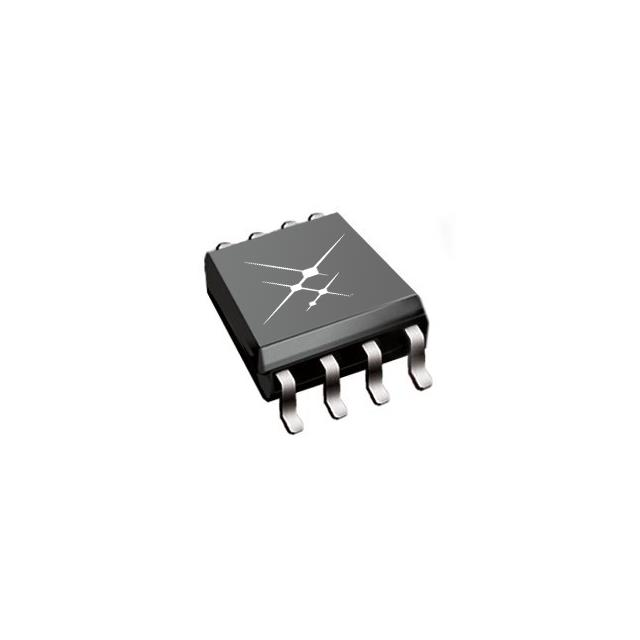

| Part number: | SI8712BC-B-IP |
| Description: | DGTL ISO 5000VRMS 1CH GP 8DIP GW |
| Manufacturer | Skyworks Solutions, Inc. |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Skyworks Solutions, Inc." |
| Package / Case | 8-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3V ~ 30V |
| Data Rate | 15Mbps |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 5000Vrms |
| Inputs - Side 1/Side 2 | 1/0 |
| Supplier Device Package | 8-DIP Gull Wing |
| Rise / Fall Time (Typ) | 15ns, 5ns |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 20ns |
| Number of Channels | 1 |
|
