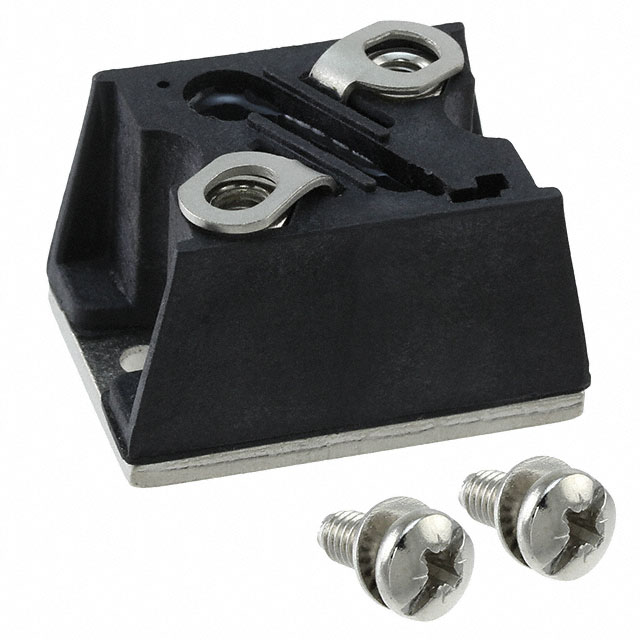

| Part number: | VS-T70RIA20 |
| Description: | SCR PHASE CONT 200V 70A D-55 |
| Manufacturer | Vishay General Semiconductor – Diodes Division |
| Encapsulation | Bulk |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay General Semiconductor – Diodes Division" |
| Package / Case | D-55 T-Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Single |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 120 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1660A, 1740A |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 70 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 110 A |
| Voltage - Off State | 200 V |
|
