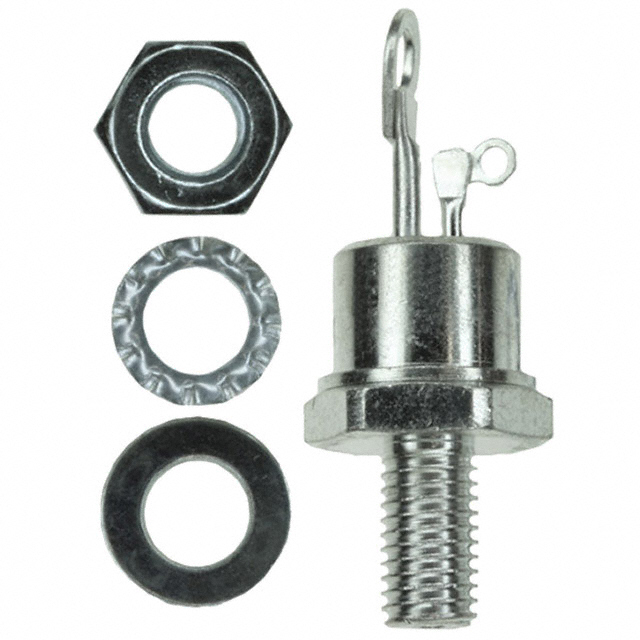

| Part number: | VS-10RIA10 |
| Description: | SCR 100V 25A TO208AA |
| Manufacturer | Vishay General Semiconductor – Diodes Division |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay General Semiconductor – Diodes Division" |
| Package / Case | TO-208AA, TO-48-3, Stud |
| Mounting Type | Chassis, Stud Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -65°C ~ 125°C |
| Current - Hold (Ih) (Max) | 130 mA |
| Current - Gate Trigger (Igt) (Max) | 60 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 225A, 240A |
| Current - On State (It (AV)) (Max) | 10 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Voltage - On State (Vtm) (Max) | 1.75 V |
| Current - Off State (Max) | 20 mA |
| Supplier Device Package | TO-208AA (TO-48) |
| Current - On State (It (RMS)) (Max) | 25 A |
| Voltage - Off State | 100 V |
|
