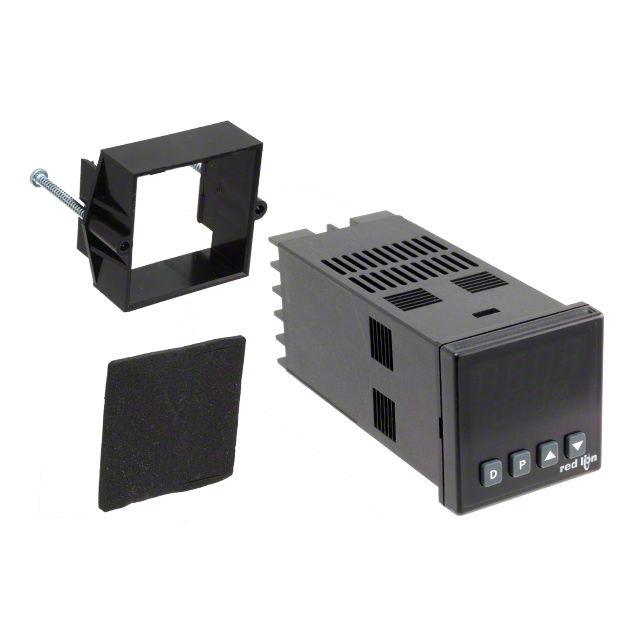

| Part number: | T4821114 |
| Description: | CONTROL TEMP 24V 18-36V PANEL MT |
| Manufacturer | Red Lion |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Red Lion" |
| Features | Heater Fault Detection |
| Display Type | LED - Dual Color Characters |
| Output Type | Relay (2), Voltage (External SSR) |
| Mounting Type | Panel Mount |
| Type | Temperature Controller (RTD, Type B, E, J, K, N, R, S, T) |
| Weight | 0.38 lb (172.37 g) |
| Operating Temperature | 0°C ~ 50°C |
| Termination Style | Screw Terminal |
| Voltage - Supply | 24VAC, 18 ~ 36VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Panel Cutout Dimensions | Square - 45.00mm x 45.00mm |
| Input Range | -200°C ~ 1820°C, -5 ~ 56mV |
| Display Characters - Height | 0.401" (10.20mm), 0.299" (7.60mm) |
| Control Method | On/Off, Proportional (PID) |
| Number of Characters Per Row | 4, 4 |
|
