| Part number: | ADUM3480ARSZ |
| Description: | DGTL ISO 3750VRMS 4CH GP 20SSOP |
| Manufacturer | Linear Technology (Analog Devices, Inc.) |
| Encapsulation | Tube |
| Quantity | 66 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Linear Technology (Analog Devices, Inc.)" |

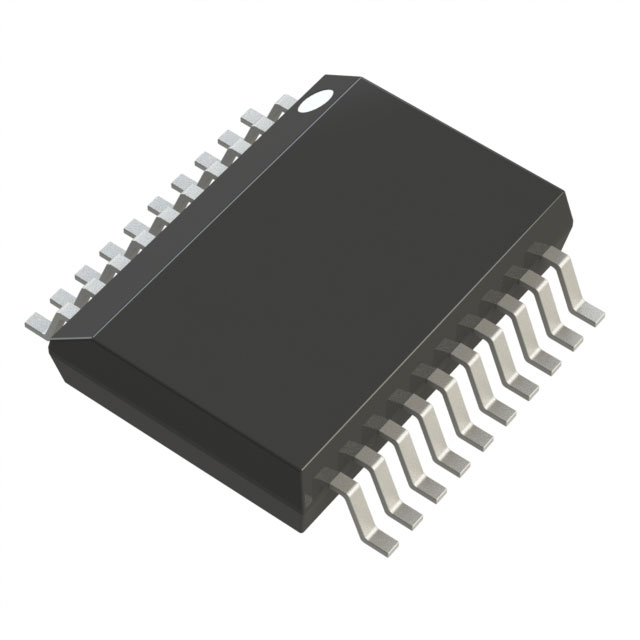

| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.8V ~ 5.5V, 3V ~ 5.5V |
| Data Rate | 1Mbps |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 3750Vrms |
| Inputs - Side 1/Side 2 | 4/0 |
| Supplier Device Package | 20-SSOP |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 90ns, 90ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 6ns |
| Number of Channels | 4 |
|
