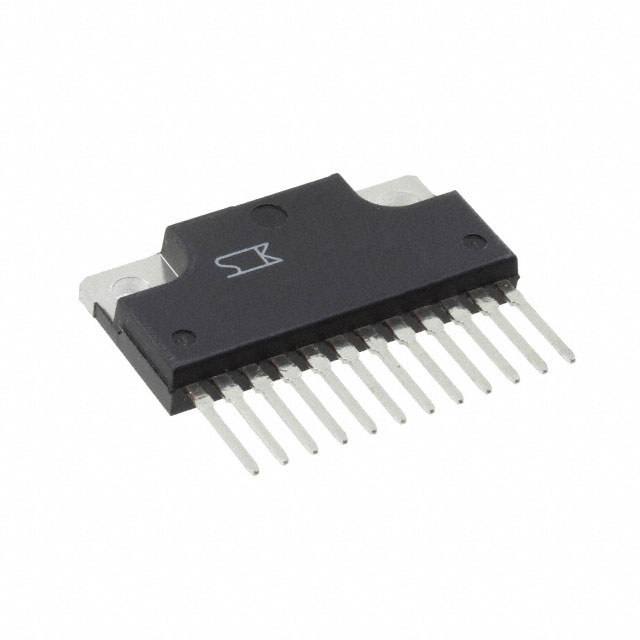

| Part number: | SLA5061 |
| Description: | MOSFET 3N/3P-CH 60V 10A/6A 12SIP |
| Manufacturer | Sanken Electric Co., Ltd. |
| Encapsulation | Bulk |
| Quantity | 180 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanken Electric Co., Ltd." |
| Package / Case | 12-SIP Exposed Tab |
| Mounting Type | Through Hole |
| Configuration | 3 N and 3 P-Channel (3-Phase Bridge) |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 5W |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 10A, 6A |
| Input Capacitance (Ciss) (Max) @ Vds | 460pF @ 10V, 1200pF @ 10V |
| Rds On (Max) @ Id, Vgs | 140mOhm @ 5A, 4V |
| FET Feature | Logic Level Gate |
| Supplier Device Package | 12-SIP |
|
