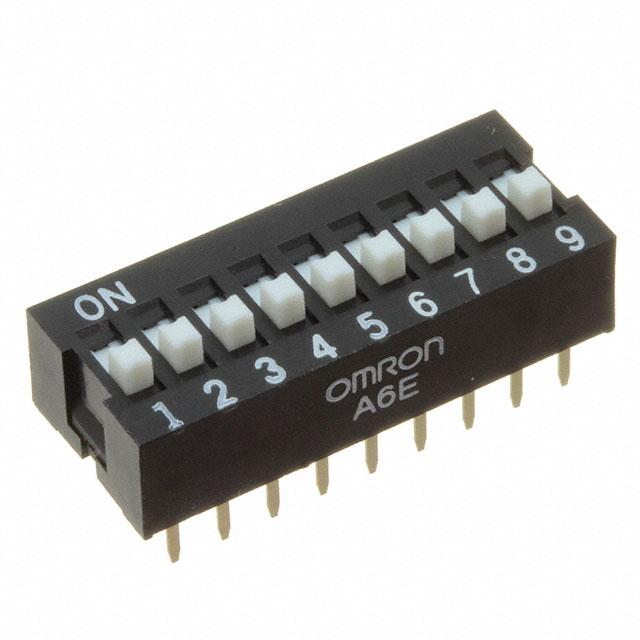

| Part number: | A6E-9104 |
| Description: | SWITCH SLIDE DIP SPST 0.025A 24V |
| Manufacturer | Omron Electronic Components |
| Encapsulation | Tray |
| Quantity | 19 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Omron Electronic Components" |
| Features | Sealed - Flux Protection |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Current Rating (Amps) | 25mA |
| Mounting Type | Through Hole |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | SPST |
| Operating Temperature | -20°C ~ 70°C |
| Termination Style | PC Pin |
| Actuator Type | Slide (Standard) |
| Height Above Board | 0.280" (7.10mm) |
| Actuator Level | Raised |
| Washable | No |
| Number of Positions | 9 |
|
