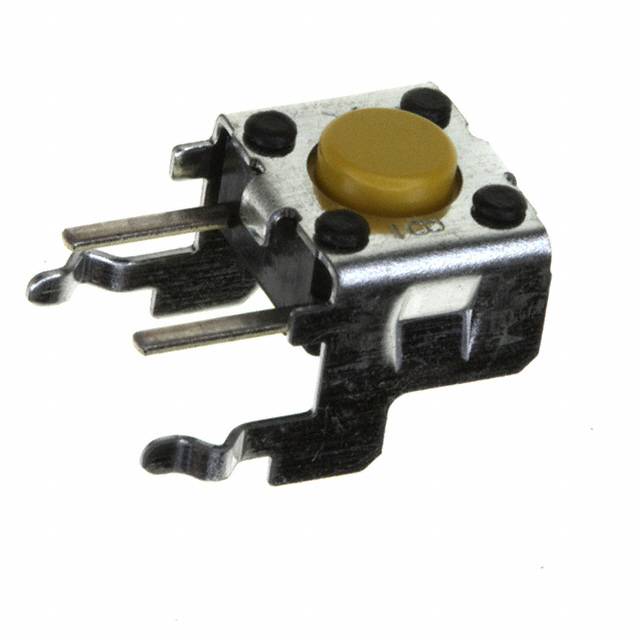

| Part number: | B3F-3102 |
| Description: | SWITCH TACTILE SPST-NO 0.05A 24V |
| Manufacturer | Omron Electronic Components |
| Encapsulation | Bag |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Omron Electronic Components" |
| Features | Grounding Pin |
| Mounting Type | Through Hole, Right Angle |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -25°C ~ 70°C |
| Termination Style | PC Pin |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Standard |
| Operating Force | 150gf |
| Outline | 7.30mm x 6.25mm |
| Actuator Orientation | Side Actuated |
| Actuator Length, Right Angle | 3.15mm |
|
