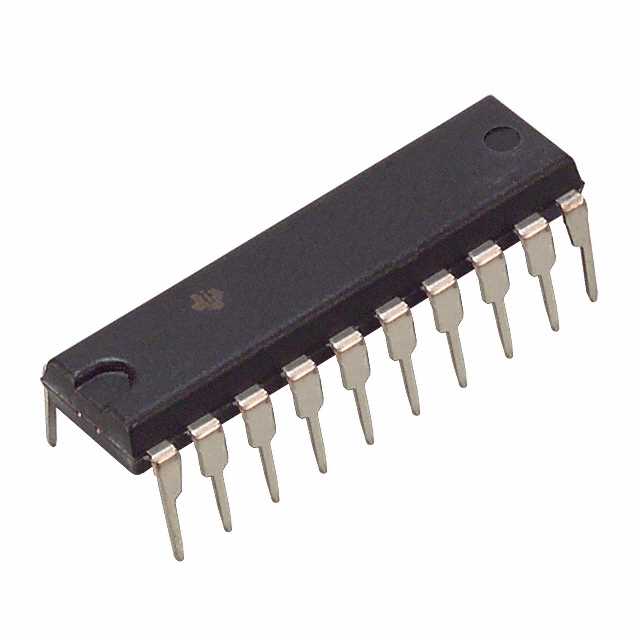

| Part number: | SN74ALS804AN |
| Description: | IC GATE NAND 6CH 2-INP 20DIP |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | NAND Gate |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 15mA, 24mA |
| Number of Inputs | 2 |
| Supplier Device Package | 20-PDIP |
| Input Logic Level - High | 2V |
| Input Logic Level - Low | 0.8V |
| Max Propagation Delay @ V, Max CL | 8ns @ 5V, 50pF |
| Number of Circuits | 6 |
|
